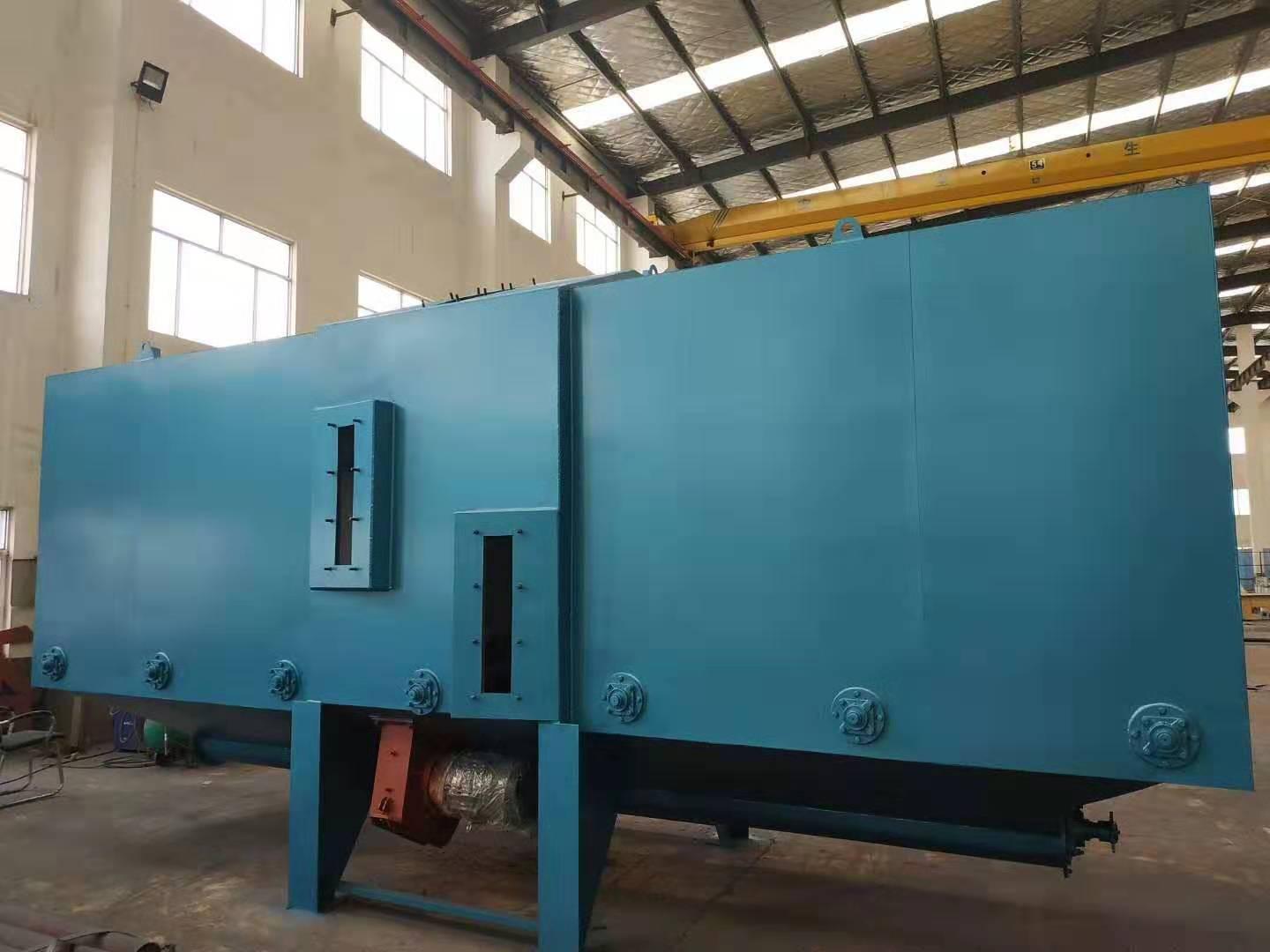

Xinsa roll pass shot blasting machine application
The similar products at home and abroad are designed and manufactured by the type shot blasting machine. The main engine of the rust removing department (shot blasting cleaning) adopts the high efficiency shot blasting device, and the full curtain type blast sand separator is used. The cleaning department adopts special high-strength nylon roller brush and high-pressure fan secondary cleaning device; (selection) preheating and drying parts using a variety of heating methods; paint spraying department adopts high-pressure airless spraying mode.
Q69 series shot blasting machine is mainly used in steel structure construction, anticorrosion and heat preservation construction, bridge and other industries, such as large I-shaped steel, h section steel and other high-size steel structure parts to eliminate stress and surface rust removal cleaning, steel plate and all kinds of section steel surface treatment, It can also be used for surface shot blasting cleaning and strengthening of metal components.
Q69 series roller pass shot blasting machine, all according to the user workpiece: shape size, material, weight, rust degree and cleaning requirements, production beat, construction site, procurement budget and other conditions to design custom,a variety of, The following table can not be listed one by one, but only some commonly used models.
| Model |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6925 |
Q6930 |
Q6940 |
| The effective cleaning width(mm) |
800 |
1200 |
1500 |
2000 |
2500 |
3000 |
4000 |
| The room feed-in size(mm) |
1000x400 |
1400x400 |
1700x400 |
2200X400 |
2700X800 |
3200X800 |
4200X400 |
| The length of cleaning workpiece(mm) |
1200-12000 |
1200-1600 |
1200-12000 |
1200-12000 |
3000-12000 |
2400-12000 |
4500-18000 |
| The speed of wheel conveyer(stepless speed variation(m/min) |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
| The thickness of cleaning steel sheet(mm) |
3-60 |
3-60 |
1.5-60 |
3-60 |
3-60 |
3-110 |
4.5-100 |
| (mm)The section steel specification |
800X300 |
1000X300 |
1500X300 |
2000X300 |
2500X700 |
3000X700 |
4000X300 |
| The quantity of shot blasting(kg/min) |
4X180 |
4X250 |
4X250 |
6X250 |
6X250 |
6X360 |
8X360 |
| (kg)The first enclosed quantity |
4000 |
4000 |
4000 |
4500 |
4500 |
8000 |
11000 |
| (mm)Roll brush adjusting height |
200 |
200 |
350 |
450 |
600 |
850 |
900 |
| (m3/h)Airness capacity |
22000 |
17560 |
19000 |
19550 |
27758 |
28050 |
38000 |
| (mm)Exterior size |
25017x4500x9015 |
12180x4250x7095 |
15200x5370x6797 |
30650x6850x9095 |
31200X8070X7500 |
44042X6385X7758 |
45000X7830X11117 |
| (kw)Total power(except for dust cleaning) |
90 |
78.3 |
113.5 |
156.6 |
204.8 |
224.55 |
293.6 |
FAQ
1. How many days do you need to produce this machine?
This is specially designed machine according to your specific requirement. From engineer designing to production completion, It needs about 45-50 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very begining to the end of production. Every machine will be fully assembled and carefully tested before shipment.
3. What's your machine quality guarantee?
Quality guarantee time is one year, we choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long will it take?
YES, we supply overseas service, but customer needs to pay for the engineers flight tickets and hotel foods.
Small machine usually takes within 5 days.
Big machine usually takes about 20 days.
we also can design and manufacture all kind of non-standard Pneumatic sand blasting room with automatic abrasive recovery system according to customer's different workpiece detail requirement,weight and productivity.
Notice:
According to your requirements, the most suitable machine will be designed for your workpieces, please indicate the following details.
1. What kind of workpiece you clean?
2. The workpiece size, length, width, height and weight of maximum workpiece.
3. What's your production capacity per day (8 hours)?
4. It's my pleasure if you can provide details workpiece photos to us.
Based on these details information, the detailed technical proposals will be sent to you for reference.
FAQ:
After-sale service:
1. Installation and commissioning issue: We will send one technicians to assist with machine installation and commissioning, customer pays for return tickets, hotel and diet. Customer need arrange skilled worker and prepare various installation machinery and tools.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries, such as The USA, Russia, UK, Ukraine, Australia, Malaysia, UAE, Egypt, Mexico, Brasil, etc.
5. Our shot blasting spare parts are high quality with Cr20S High Chrome, ZGMn13, Mn65, etc.
Trade Information:
MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB (FCA), CIP, CFR, CIF, DDU, DDP, Turnkey.
Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.
Delivery time: Within 20-60 days according to different type equipment.
Any question pls kindly contact with us and welcome to visit our factory!
